scSVC defines fine-grained subtypes of TAM cells
Notebook Guide
Purpose. Analyze Monocyte sc-SVC states, marker programs, enrichment results, and cell-cell communication.
Inputs. Executed Monocyte reconstruction outputs under ../../output/sc_SVC_case/P1CRC_Xenium/Monocyte/ plus raw Xenium data for comparison.
Outputs. Spatial maps, marker dot plots, volcano plots, enrichment figures, and communication summaries saved under the Monocyte output directory and displayed inline.
Reading order.
Load reconstructed SVCs
Visualize spatial subtypes and marker programs
Compare sc-SVC and raw Xenium differential signals

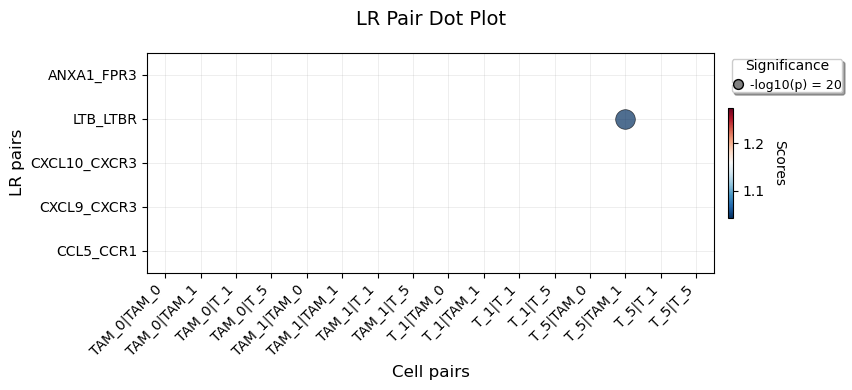

Run CellPhoneDB communication analysis
Reproducibility note. revise imports are standard package imports from the installed revise-svc distribution; this notebook does not modify sys.path to import the repository source tree.
[1]:
import os
os.environ.setdefault("TQDM_DISABLE", "1")
os.environ.setdefault("TQDM_MININTERVAL", "60")
try:
from IPython import get_ipython
_ipython = get_ipython()
if _ipython is not None:
_ipython.run_line_magic("matplotlib", "inline")
except Exception:
pass
output_dir = "../../output/sc_SVC_case/P2CRC_Xenium"
select_ct = "Mono_Macro"
Load Reconstructed SVCs
Load the executed reconstruction outputs that drive the downstream figures.
[2]:
import os
import scanpy as sc
from revise.backend.runners.sc_svc_application import ScSVCAnalysis
import pandas as pd
import gseapy as gp
import revise.analysis.bio as _revise_bio
_EMPTY_ENRICHMENT_COLUMNS = [
"Gene_set",
"Term",
"Overlap",
"P-value",
"Adjusted P-value",
"Old P-value",
"Old Adjusted P-value",
"Odds Ratio",
"Combined Score",
"Genes",
]
def _get_enrichment_human_compatible(deg_genes, geneset_file, cutoff=0.05):
if not deg_genes:
return pd.DataFrame(columns=_EMPTY_ENRICHMENT_COLUMNS)
try:
enr = gp.enrichr(
gene_list=deg_genes,
gene_sets=geneset_file,
organism="human",
cutoff=cutoff,
)
return enr.results
except Exception as exc:
print(f"Skipping enrichment analysis: {type(exc).__name__}: {exc}")
return pd.DataFrame(columns=_EMPTY_ENRICHMENT_COLUMNS)
_revise_bio.get_enrichment = _get_enrichment_human_compatible
svc_save_dir = f"{output_dir}/{select_ct}"
sc_svc_expr = sc.read_h5ad(f"{svc_save_dir}/sc_SVC_expr.h5ad")
sc_svc_spatial = sc.read_h5ad(f"{svc_save_dir}/sc_SVC_spatial.h5ad")
sc_svc_analysis = ScSVCAnalysis(sc_svc_spatial, sc_svc_expr,
"SVC_cluster")
# Legacy notebooks use these aliases in downstream result and plotting cells.
sc_SVC_adata = sc_svc_analysis.sc_SVC_adata_spatial.copy()
adata_sp = sc_svc_analysis.sc_SVC_adata_spatial.copy()
adata_sc = sc_svc_analysis.sc_SVC_adata_expr.copy()
/cpfs01/projects-HDD/cfff-c7cd658afc74_HDD/jiaoyifeng/miniconda3/envs/brainbeacon/lib/python3.9/site-packages/numba/core/decorators.py:246: RuntimeWarning: nopython is set for njit and is ignored
warnings.warn('nopython is set for njit and is ignored', RuntimeWarning)
Conducting differential expression analysis...
[3]:
cm_df = sc_svc_analysis.get_cm_df("Level2")
cm_df
/cpfs01/projects-HDD/cfff-c7cd658afc74_HDD/jiaoyifeng/miniconda3/envs/brainbeacon/lib/python3.9/site-packages/revise/backend/runners/sc_svc_application.py:67: FutureWarning: The default of observed=False is deprecated and will be changed to True in a future version of pandas. Pass observed=False to retain current behavior or observed=True to adopt the future default and silence this warning.
grouped = self.sc_SVC_adata_expr.obs.groupby([self.cluster_col, sub_cell_type_col]).size()
[3]:
| Level2 | Macro_C1QC | Macro_MKI67 | Macro_SPP1 | Mono |
|---|---|---|---|---|
| SVC_cluster | ||||
| 0 | 305 | 36 | 14 | 6 |
| 1 | 142 | 17 | 19 | 3 |
| 2 | 812 | 17 | 6 | 24 |
| 3 | 438 | 5 | 24 | 15 |
| 4 | 122 | 17 | 157 | 16 |
| 5 | 390 | 6 | 6 | 6 |
| 6 | 244 | 3 | 3 | 248 |
| 7 | 101 | 8 | 7 | 288 |
[4]:
import matplotlib.pyplot as plt
import matplotlib.colors as mcolors
size = None
cmap = plt.cm.get_cmap('tab20', lut=10)
palette = [mcolors.to_hex(cmap(i)) for i in range(cmap.N)]
sc.pl.scatter(sc_svc_analysis.sc_SVC_adata_spatial, x="x", y="y",
color='Level2',
size=size)
desired_order = ['3','1','4','0','5','2','6','7'] # for better visualization
current_categories = sc_svc_analysis.sc_SVC_adata_spatial.obs['SVC_cluster'].cat.categories.astype(str).tolist()
ordered_categories = [cat for cat in desired_order if cat in current_categories]
ordered_categories += [cat for cat in current_categories if cat not in ordered_categories]
sc_svc_analysis.sc_SVC_adata_spatial.obs['SVC_cluster'] = (
sc_svc_analysis.sc_SVC_adata_spatial.obs['SVC_cluster'].cat.reorder_categories(ordered_categories, ordered=True)
)
sc.pl.scatter(sc_svc_analysis.sc_SVC_adata_spatial, x="x", y="y",
color='SVC_cluster',
size=size)
/tmp/ipykernel_31481/2691602389.py:5: MatplotlibDeprecationWarning: The get_cmap function was deprecated in Matplotlib 3.7 and will be removed in 3.11. Use ``matplotlib.colormaps[name]`` or ``matplotlib.colormaps.get_cmap()`` or ``pyplot.get_cmap()`` instead.
cmap = plt.cm.get_cmap('tab20', lut=10)

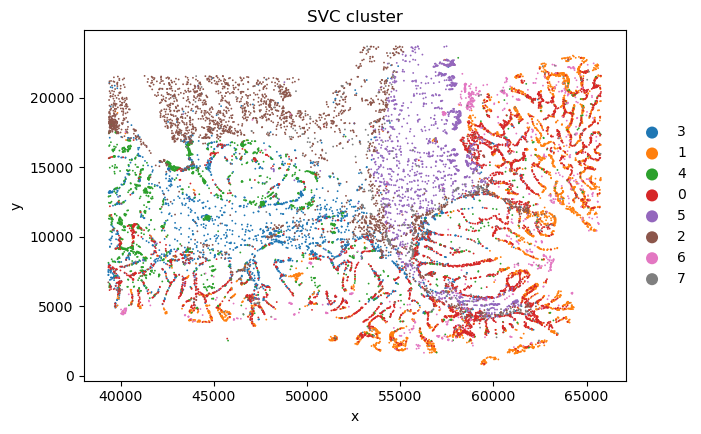

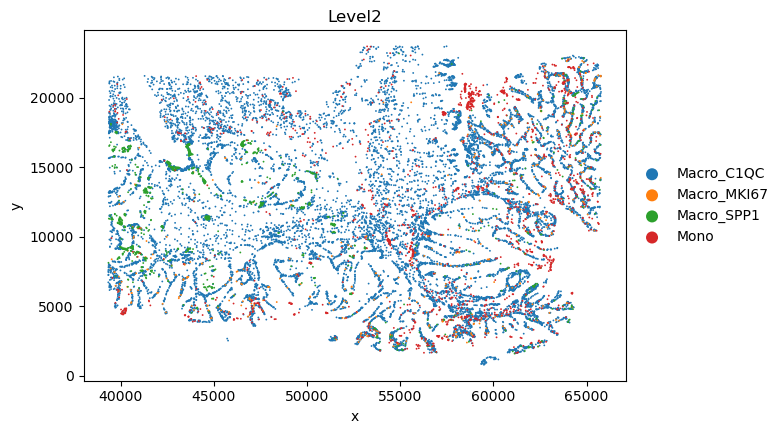

Spatial Subtype Maps
Display reconstructed spatial cell states and side-by-side annotation comparisons.
[5]:
import matplotlib.pyplot as plt
def plot_sc_SVC(adata, color, title = None, file_name = None):
colors = color if isinstance(color, (list, tuple)) else [color]
titles = title if isinstance(title, (list, tuple)) else [title] * len(colors)
plt.figure(figsize=(10, 8*len(colors)))
for color_key, plot_title in zip(colors, titles):
sc.pl.scatter(
adata, x="x", y="y",
color=color_key,
title=plot_title, show=False,
)
plt.savefig(file_name, dpi = 300)
plt.show()
plt.close()
sc_SVC_file_name = f"{output_dir}/sc_SVC.png"

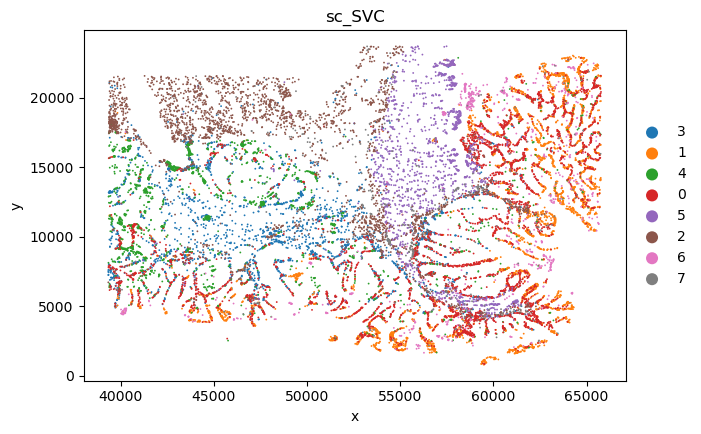

plot_sc_SVC(sc_svc_analysis.sc_SVC_adata_spatial, color='SVC_cluster',
file_name=sc_SVC_file_name
)
sc_SVC_file_name = f"{output_dir}/compare.png"

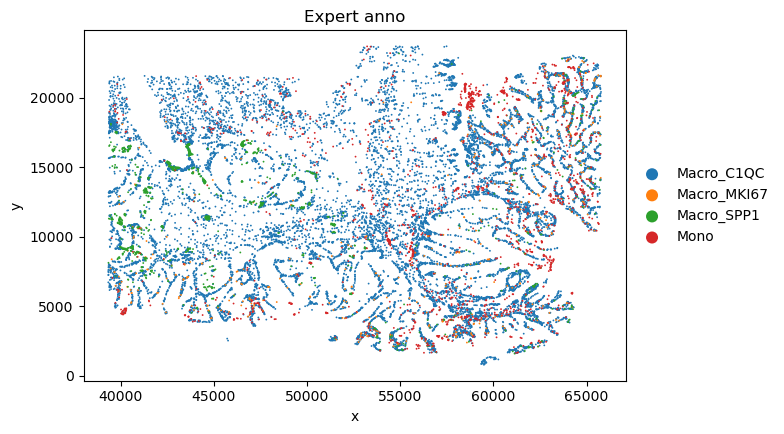

plot_sc_SVC(sc_svc_analysis.sc_SVC_adata_spatial, color=['Level2','SVC_cluster'],
title=["Expert anno", "sc_SVC"],
file_name=sc_SVC_file_name
)
<Figure size 1000x800 with 0 Axes>
<Figure size 1000x1600 with 0 Axes>
bioinfo analysis
[6]:
sc_svc_analysis.sc_SVC_degs.to_csv(f"{output_dir}/degs_all.csv")
sc_svc_analysis.sc_SVC_degs
[6]:
| group | gene | logfoldchanges | pvals | pvals_adj | log_q | |
|---|---|---|---|---|---|---|
| 0 | 0 | MMP12 | 6.157999 | 1.990059e-136 | 2.604590e-132 | 100.0 |
| 1 | 2 | C1QB | 2.797948 | 1.100504e-165 | 1.440340e-161 | 100.0 |
| 2 | 6 | CTSZ | -3.827421 | 1.739724e-142 | 9.487292e-140 | 100.0 |
| 3 | 6 | GPNMB | -4.479141 | 2.049615e-184 | 2.235447e-181 | 100.0 |
| 4 | 6 | CD4 | -3.998396 | 1.025762e-164 | 8.390732e-162 | 100.0 |
| ... | ... | ... | ... | ... | ... | ... |
| 104699 | 2 | SPHK2 | -0.000144 | 9.998170e-01 | 1.000000e+00 | -0.0 |
| 104700 | 2 | NSMCE3 | -0.000513 | 9.987000e-01 | 1.000000e+00 | -0.0 |
| 104701 | 2 | PRKCQ | -0.001938 | 9.986947e-01 | 1.000000e+00 | -0.0 |
| 104702 | 2 | THOC6 | -0.000487 | 9.986390e-01 | 1.000000e+00 | -0.0 |
| 104703 | 5 | PRICKLE1 | -0.019269 | 9.899063e-01 | 1.000000e+00 | -0.0 |
104704 rows × 6 columns
[7]:
fc_threshold = 1
pathway_num = 20
gene_num = 60
geneset_file = ["MSigDB_Hallmark_2020"]
# geneset_file = ["MSigDB_Hallmark_2020"]
pathway_file_name = f"{output_dir}/pathway_{fc_threshold}_{pathway_num}.txt"
cluster_nums = ['0', '1', '4']

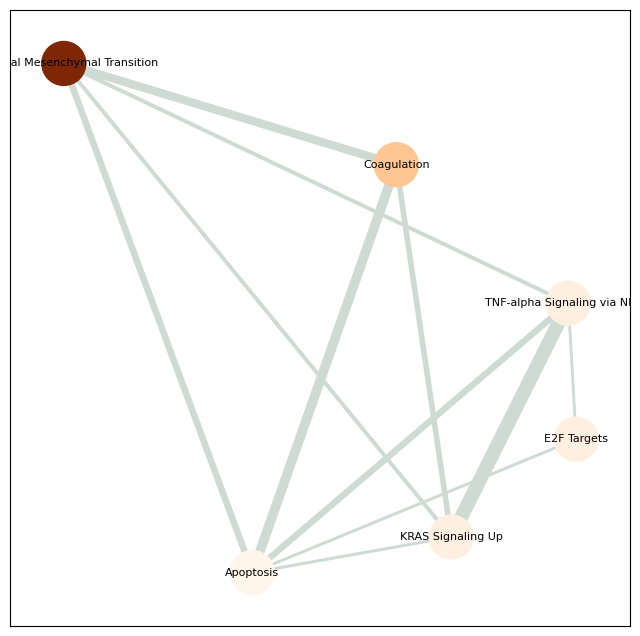

all_pathway = sc_svc_analysis.get_pathway_conclusion(
cluster_nums, fc_threshold=fc_threshold, pathway_num=pathway_num, gene_num=gene_num, geneset_file=geneset_file, normalize=False)
all_pathway.to_csv(pathway_file_name)
all_pathway
Conducting differential expression analysis...
Cluster 4:
Up-regulated genes: ['SPP1', 'APOE', 'VIM', 'CHI3L1', 'CD9', 'CSTB', 'FBP1', 'GPNMB', 'FN1', 'APOC1', 'FTL', 'CD52', 'FTH1', 'LSP1', 'S100A6', 'SDC2', 'LGALS1', 'LPL', 'MARCO', 'NUPR1', 'S100A10', 'ANXA2', 'TIMP2', 'ANPEP', 'CTSK', 'APLP2', 'S100A11', 'LGALS3', 'OLR1', 'AQP9', 'CYP27A1', 'SPARC', 'ITGA5', 'GCHFR', 'NCF2', 'RGCC', 'RNASE1', 'FABP5', 'MMP7', 'EMP3', 'APOC2', 'S100A4', 'TSPO', 'CHIT1', 'CD82', 'LIPA', 'PLAUR', 'ITGB3', 'VAT1', 'EMP1', 'ZNF385A', 'COL6A2', 'S100A9', 'GLIPR2', 'SH3BGRL3', 'CD109', 'TREM2', 'FAM20C', 'SLC11A1', 'LTA4H']
Enriched pathways: ['Coagulation' 'Epithelial Mesenchymal Transition' 'Complement'
'Cholesterol Homeostasis' 'Inflammatory Response' 'Angiogenesis'
'Hypoxia' 'Apoptosis' 'Xenobiotic Metabolism' 'p53 Pathway'
'KRAS Signaling Up' 'Reactive Oxygen Species Pathway' 'UV Response Dn'
'IL-2/STAT5 Signaling' 'Adipogenesis' 'Estrogen Response Late'
'Myogenesis' 'mTORC1 Signaling' 'IL-6/JAK/STAT3 Signaling'
'Bile Acid Metabolism']
Cluster 0:
Up-regulated genes: ['STAB1', 'MS4A6A', 'C1QC', 'MPEG1', 'MMP12', 'C1QB', 'SELENOP', 'C1QA', 'CD74', 'FGL2', 'CTSC', 'SLCO2B1', 'CD14', 'ENPP2', 'TMEM176B', 'SLC40A1', 'ITPR2', 'CYBB', 'CSF1R', 'FCGRT', 'DNASE1L3', 'GPR34', 'ITM2B', 'TGFBI', 'AXL', 'SIGLEC12', 'SGPL1', 'CD4', 'ADAM28', 'FUCA1', 'TMEM176A', 'ITGA4', 'FPR3', 'LPAR6', 'SIGLEC10', 'OLFML2B', 'MERTK', 'FOLR2', 'CD163L1', 'ITGA9', 'NRP1', 'CD93', 'CD209', 'CD300A', 'GIMAP7', 'AOAH', 'ADAP2', 'ARHGAP4', 'C3AR1', 'OTULINL', 'FRMD4A', 'ST8SIA4', 'SERPINF1', 'CIITA', 'CD163', 'P2RY13', 'P2RY6', 'PLAU', 'GAL3ST4', 'MS4A4A']
Enriched pathways: ['KRAS Signaling Up' 'Inflammatory Response' 'Interferon Gamma Response'
'Complement' 'Allograft Rejection' 'Apical Junction'
'IL-6/JAK/STAT3 Signaling' 'Interferon Alpha Response'
'Androgen Response' 'Coagulation' 'Glycolysis'
'Epithelial Mesenchymal Transition' 'mTORC1 Signaling' 'Angiogenesis'
'Hedgehog Signaling' 'IL-2/STAT5 Signaling' 'Protein Secretion'
'PI3K/AKT/mTOR Signaling' 'p53 Pathway' 'UV Response Dn']
Cluster 1:
Up-regulated genes: ['IL7R', 'CXCL10', 'CXCL9', 'IL4I1', 'ADAM19', 'CXCL8', 'GBP1', 'IDO1', 'C15orf48', 'MARCKSL1', 'LCN2', 'SOD2', 'CXCL1', 'GBP5', 'GPR183', 'IL1B', 'SLC39A8', 'MMP12', 'RNF19B', 'SOCS3', 'SERPINB9', 'CD40', 'CXCL11', 'CALHM6', 'PSTPIP2', 'CD80', 'CXCL3', 'MT2A', 'LYN', 'ACSL5', 'LAMP3', 'IER3', 'GPR132', 'EHD1', 'NKG7', 'APOL3', 'WARS', 'UBD', 'MYO1G', 'EDEM1', 'EDEM2', 'SRSF7', 'DAPP1', 'MAP3K7', 'LYSMD2', 'TRAF1', 'AP3D1', 'CDK4', 'TIFAB', 'EXOC7', 'SCO2', 'CLEC4D', 'PA2G4', 'NCL', 'NLRC5', 'CD274', 'SUCO', 'IL32', 'SRSF5', 'TNFAIP3']
Enriched pathways: ['TNF-alpha Signaling via NF-kB' 'Interferon Gamma Response'
'Inflammatory Response' 'IL-6/JAK/STAT3 Signaling' 'Allograft Rejection'
'Complement' 'KRAS Signaling Up' 'IL-2/STAT5 Signaling'
'Epithelial Mesenchymal Transition' 'Interferon Alpha Response'
'PI3K/AKT/mTOR Signaling' 'Apoptosis' 'Myc Targets V2' 'G2-M Checkpoint'
'Myc Targets V1' 'Hypoxia' 'Pperoxisome' 'Fatty Acid Metabolism'
'UV Response Up' 'Apical Surface']
[7]:
| Gene_set | Term | Overlap | P-value | Adjusted P-value | Old P-value | Old Adjusted P-value | Odds Ratio | Combined Score | Genes | group | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | MSigDB_Hallmark_2020 | Coagulation | 10/138 | 9.883841e-12 | 2.119033e-10 | 0 | 0 | 30.956250 | 784.435086 | SPARC;MMP7;ITGB3;CTSK;APOC2;APOC1;FN1;OLR1;CD9... | 4 |
| 1 | MSigDB_Hallmark_2020 | Epithelial Mesenchymal Transition | 11/200 | 1.695226e-11 | 2.119033e-10 | 0 | 0 | 23.459778 | 581.817027 | SPARC;LGALS1;ITGB3;ANPEP;COL6A2;PLAUR;SPP1;FN1... | 4 |
| 2 | MSigDB_Hallmark_2020 | Complement | 9/200 | 7.945171e-09 | 6.620976e-08 | 0 | 0 | 18.246689 | 340.313554 | LGALS3;APOC1;TIMP2;PLAUR;FN1;OLR1;LTA4H;LIPA;S... | 4 |
| 3 | MSigDB_Hallmark_2020 | Cholesterol Homeostasis | 6/74 | 8.918131e-08 | 5.573832e-07 | 0 | 0 | 32.470588 | 527.081887 | LGALS3;FABP5;PLAUR;LPL;CD9;S100A11 | 4 |
| 4 | MSigDB_Hallmark_2020 | Inflammatory Response | 8/200 | 1.424605e-07 | 7.123026e-07 | 0 | 0 | 15.823718 | 249.448268 | MARCO;CD82;ITGB3;AQP9;PLAUR;OLR1;EMP3;ITGA5 | 4 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 27 | MSigDB_Hallmark_2020 | Bile Acid Metabolism | 1/112 | 2.864074e-01 | 3.184112e-01 | 0 | 0 | 3.027791 | 3.785768 | ACSL5 | 1 |
| 28 | MSigDB_Hallmark_2020 | Unfolded Protein Response | 1/113 | 2.885602e-01 | 3.184112e-01 | 0 | 0 | 3.000605 | 3.729307 | EDEM1 | 1 |
| 30 | MSigDB_Hallmark_2020 | Glycolysis | 1/200 | 4.533326e-01 | 4.533326e-01 | 0 | 0 | 1.681373 | 1.330183 | IER3 | 1 |
| 29 | MSigDB_Hallmark_2020 | Xenobiotic Metabolism | 1/200 | 4.533326e-01 | 4.533326e-01 | 0 | 0 | 1.681373 | 1.330183 | MT2A | 1 |
| 31 | MSigDB_Hallmark_2020 | KRAS Signaling Dn | 1/200 | 4.533326e-01 | 4.533326e-01 | 0 | 0 | 1.681373 | 1.330183 | CD80 | 1 |
84 rows × 11 columns
Marker And Differential Programs
Summarize marker genes, differential genes, and pathway-level signals.
[8]:
cluster_nums = ['0', '1', '4']
degs = sc_svc_analysis.get_svc_degs(cluster_nums, 1)
marker_dict = (
degs.groupby('group')['gene']
.apply(lambda x: x.head(8).tolist())
.to_dict()
)

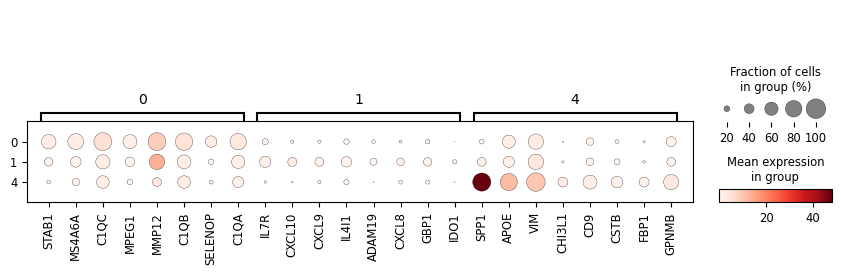

sc_svc_analysis.get_dot_plot(cluster_nums, marker_dict)
Conducting differential expression analysis...
[9]:
import matplotlib as mpl
import matplotlib.pyplot as plt
mpl.rcParams['pdf.fonttype'] = 42
mpl.rcParams['ps.useafm'] = False
plt.figure(figsize=(8, 6))
marker_dict = {
'4': ['SPP1', 'CSTB', 'CHI3L1'],
'0': [
'MMP12',
'CD14',
'CD163',
'CD209',
'MERTK',
'P2RY13',
'SIGLEC10',
],
'1': [
'IL7R',
'CXCL10',
'CXCL9',
'ADAM19'
]
}

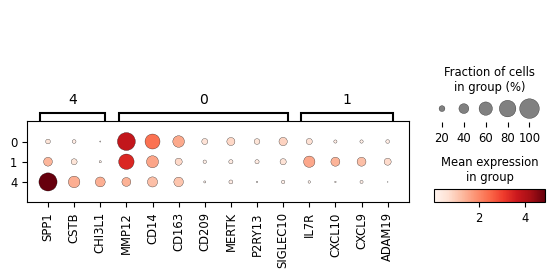

sc_svc_analysis.get_dot_plot(cluster_nums, marker_dict, normalize=True)
plt.savefig(f"{output_dir}/sc_SVC_dotplot.pdf", dpi=300, bbox_inches='tight')
plt.show()
plt.close()
<Figure size 800x600 with 0 Axes>
<Figure size 640x480 with 0 Axes>
sc_SVC
[10]:
tumor_cluster_num = '1' # Inflammation
tumor_cluster_num = '0' # Regulation
normal_cluster = '5' # Normal
if tumor_cluster_num == '1':
tumor_cluster = 'Inflammation'
elif tumor_cluster_num == '0':
tumor_cluster = 'Regulation'
[11]:
cluster_nums = [normal_cluster, tumor_cluster_num]
replace_cols = {normal_cluster: 'Normal-infiltrated', tumor_cluster_num: 'Tumor-infiltrated'}

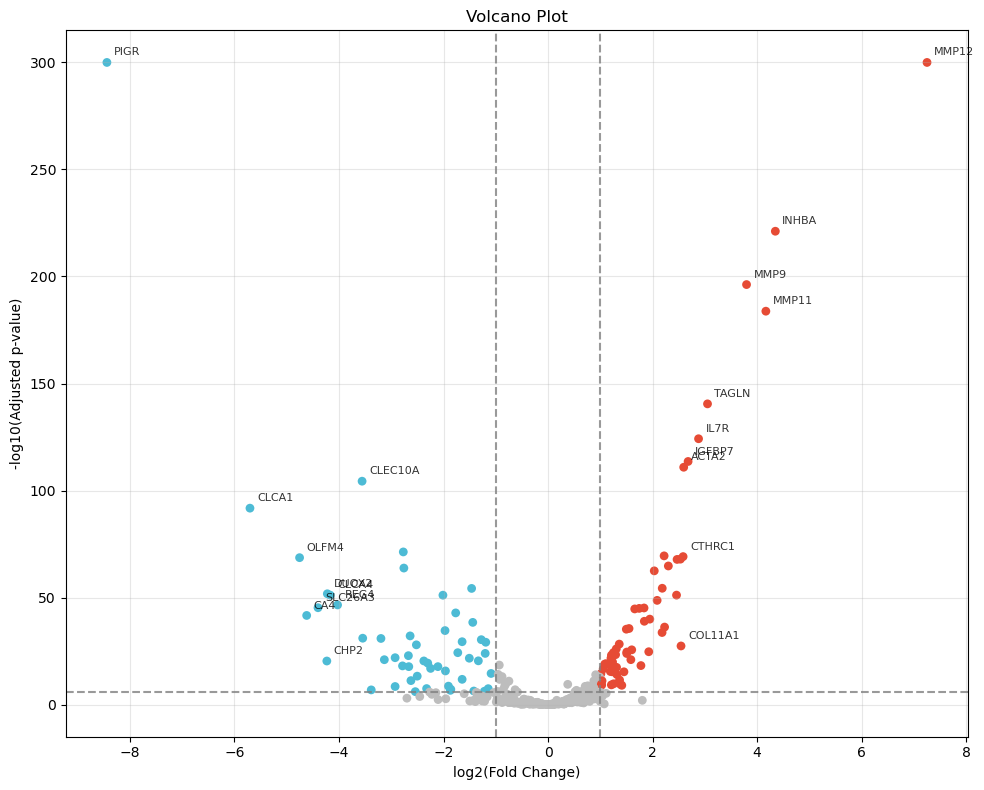

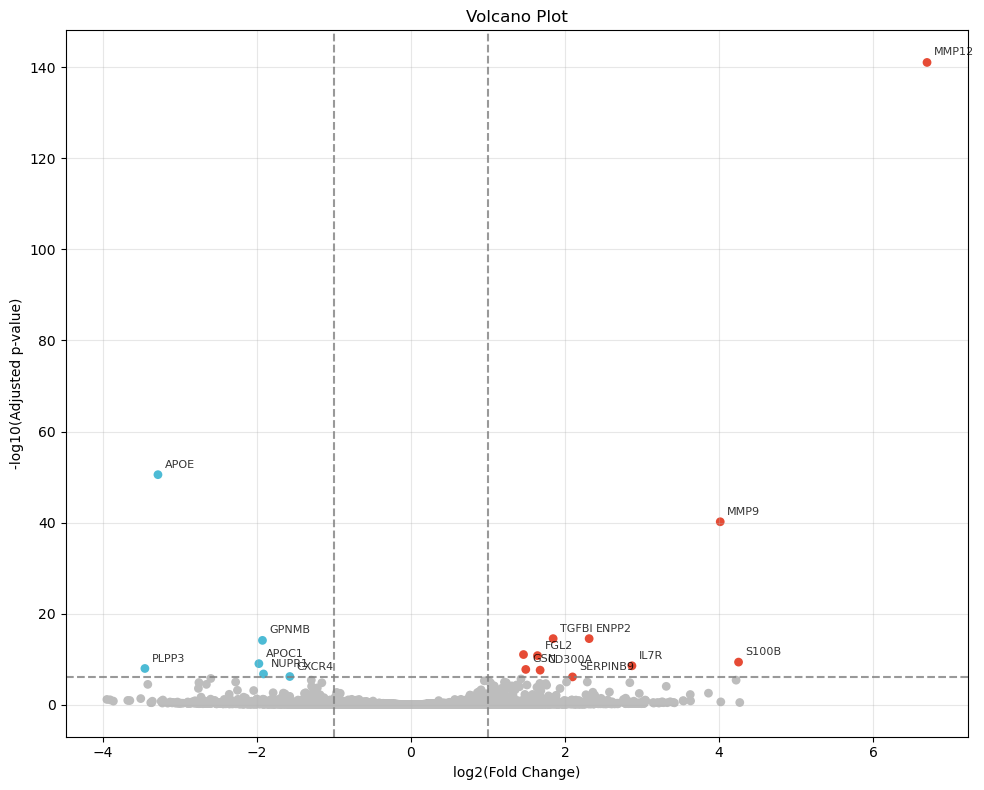

degs = sc_svc_analysis.get_volcano_plot(cluster_nums, target_group="Tumor-infiltrated", replace_cols=replace_cols, fc_threshold=None, log_fold_changes=10, logfc_threshold=1, padj_threshold=1e-6, top_k=10)
plt.savefig(f"{output_dir}/sc_SVC/{tumor_cluster}_volcano.pdf", dpi=300, bbox_inches='tight')
plt.show()
/cpfs01/projects-HDD/cfff-c7cd658afc74_HDD/jiaoyifeng/miniconda3/envs/brainbeacon/lib/python3.9/site-packages/revise/backend/runners/sc_svc_application.py:134: FutureWarning: A value is trying to be set on a copy of a DataFrame or Series through chained assignment using an inplace method.
The behavior will change in pandas 3.0. This inplace method will never work because the intermediate object on which we are setting values always behaves as a copy.
For example, when doing 'df[col].method(value, inplace=True)', try using 'df.method({col: value}, inplace=True)' or df[col] = df[col].method(value) instead, to perform the operation inplace on the original object.
select_adata.obs['SVC_cluster'].replace(replace_cols, inplace=True)
/cpfs01/projects-HDD/cfff-c7cd658afc74_HDD/jiaoyifeng/miniconda3/envs/brainbeacon/lib/python3.9/site-packages/revise/backend/runners/sc_svc_application.py:134: FutureWarning: The behavior of Series.replace (and DataFrame.replace) with CategoricalDtype is deprecated. In a future version, replace will only be used for cases that preserve the categories. To change the categories, use ser.cat.rename_categories instead.
select_adata.obs['SVC_cluster'].replace(replace_cols, inplace=True)
Conducting differential expression analysis...
<Figure size 640x480 with 0 Axes>
[12]:
# for enrichment analysis
from revise.analysis.bio import get_enrichment, pathway_barplot, pathway_network_plot
degs = degs[degs['logfoldchanges'] > 0]
degs.reset_index(drop = True, inplace = True)
deg_genes = degs["gene"][:60].tolist()
pathway = get_enrichment(deg_genes, geneset_file)
pathway.to_csv(f"{output_dir}/sc_SVC/{tumor_cluster}_pathway.csv", index=False)

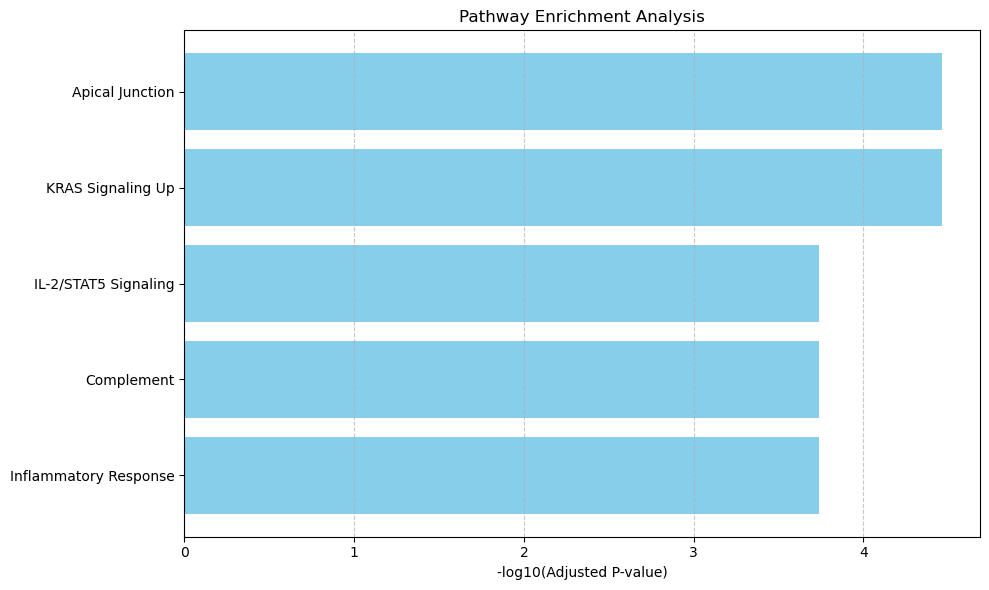

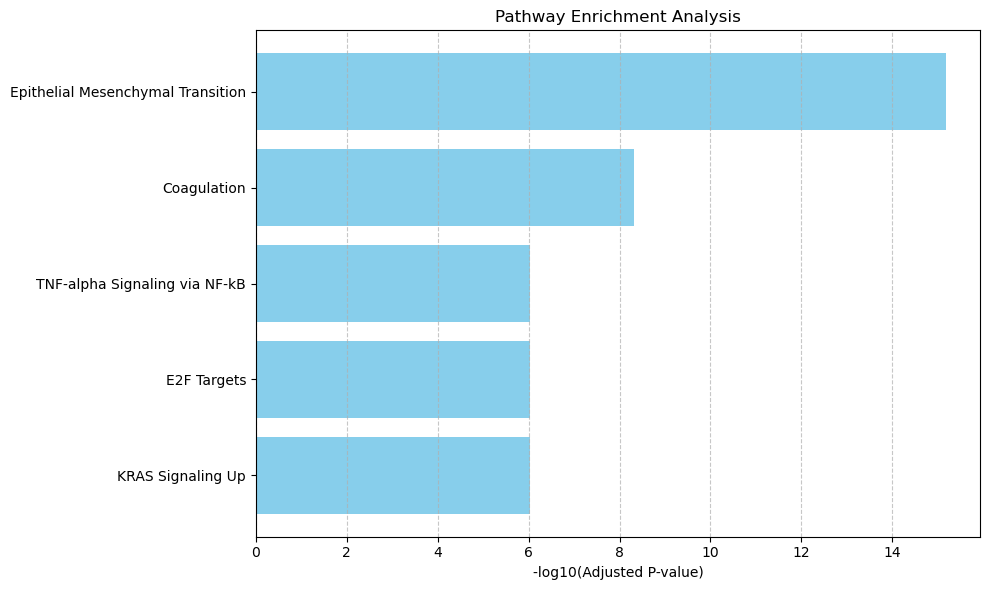

pathway_barplot(pathway)

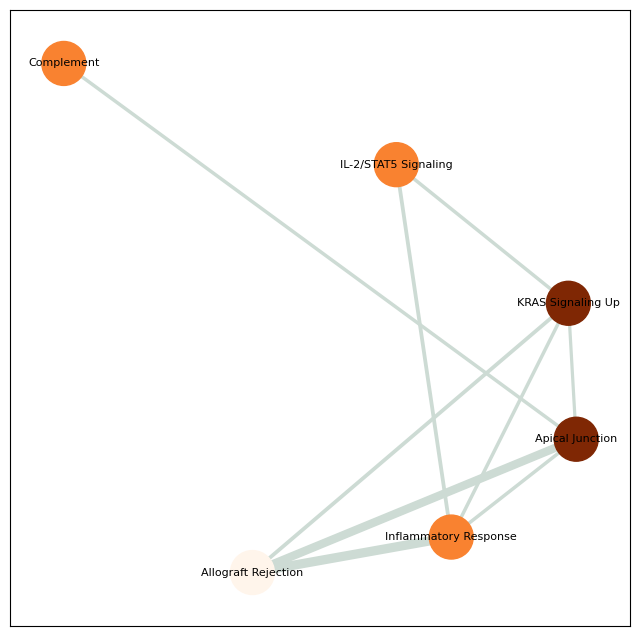

pathway_network_plot(pathway,
top_term = 6,
save_file_name = f'{output_dir}/sc_SVC/{tumor_cluster}_network.pdf')
raw
[13]:
from revise.analysis.bio import get_degs
os.makedirs(f"{output_dir}/raw_Xenium", exist_ok=True)
sc_SVC_adata = sc_svc_analysis.sc_SVC_adata_spatial.copy()
raw_select_adata = sc_SVC_adata[sc_SVC_adata.obs['SVC_cluster'].isin([normal_cluster, tumor_cluster_num])]
raw_select_adata.obs['SVC_cluster'].replace({normal_cluster: 'Normal-infiltrated', tumor_cluster_num: 'Tumor-infiltrated'}, inplace=True)
raw_deg_df = get_degs(raw_select_adata, groupby='SVC_cluster', method='t-test', fc_threshold=None)
raw_deg_df = raw_deg_df[raw_deg_df['group'] == "Tumor-infiltrated"]
raw_deg_df.reset_index(drop = True, inplace = True)
raw_deg_df.to_csv(f"{output_dir}/raw_Xenium/{tumor_cluster}_degs.csv", index=False)
# raw_deg_df = raw_deg_df[raw_deg_df['logfoldchanges'].abs() <= 10]
from revise.analysis.bio import plot_volcano
plot_volcano(raw_deg_df, logfc_threshold=1, padj_threshold=1e-6,
top_k=10, save_file_name = f"{output_dir}/raw_Xenium/{tumor_cluster}_volcano.pdf")
/tmp/ipykernel_31481/1060215734.py:5: FutureWarning: A value is trying to be set on a copy of a DataFrame or Series through chained assignment using an inplace method.
The behavior will change in pandas 3.0. This inplace method will never work because the intermediate object on which we are setting values always behaves as a copy.
For example, when doing 'df[col].method(value, inplace=True)', try using 'df.method({col: value}, inplace=True)' or df[col] = df[col].method(value) instead, to perform the operation inplace on the original object.
raw_select_adata.obs['SVC_cluster'].replace({normal_cluster: 'Normal-infiltrated', tumor_cluster_num: 'Tumor-infiltrated'}, inplace=True)
/tmp/ipykernel_31481/1060215734.py:5: FutureWarning: The behavior of Series.replace (and DataFrame.replace) with CategoricalDtype is deprecated. In a future version, replace will only be used for cases that preserve the categories. To change the categories, use ser.cat.rename_categories instead.
raw_select_adata.obs['SVC_cluster'].replace({normal_cluster: 'Normal-infiltrated', tumor_cluster_num: 'Tumor-infiltrated'}, inplace=True)
Conducting differential expression analysis...
[14]:
# for enrichment analysis
from revise.analysis.bio import get_enrichment
raw_deg_df = raw_deg_df[raw_deg_df['logfoldchanges'] > 0] # postive for up-regulated pathway
raw_deg_df.reset_index(drop = True, inplace = True)
deg_genes = raw_deg_df["gene"][:60].tolist()
pathway = get_enrichment(deg_genes, geneset_file)
pathway.to_csv(f"{output_dir}/raw_Xenium/{tumor_cluster}_pathway.csv", index=False)
pathway_barplot(pathway)
pathway_network_plot(pathway,
top_term = 6,
save_file_name = f'{output_dir}/raw_Xenium/{tumor_cluster}_network.pdf')
CCI
[15]:
output_dir
[15]:
'../../output/sc_SVC_case/P2CRC_Xenium'
[16]:
import scanpy as sc
T_SVC_adata = sc.read(f"{output_dir}/../T/sc_SVC_expr.h5ad")
T_SVC_adata = T_SVC_adata[T_SVC_adata.obs['SVC_cluster'].isin(['1','5'])]
# T_SVC_adata = T_SVC_adata[T_SVC_adata.obs['SVC_cluster'].isin(['0','1','5'])]
T_SVC_adata.obs['SVC_cluster'] = [f"T_{i}" for i in T_SVC_adata.obs['SVC_cluster']]
TAM_SVC_adata = sc.read(f"{output_dir}/sc_SVC_expr.h5ad")
TAM_SVC_adata = TAM_SVC_adata[TAM_SVC_adata.obs['SVC_cluster'].isin(['0','1'])]
TAM_SVC_adata.obs['SVC_cluster'] = [f"TAM_{i}" for i in TAM_SVC_adata.obs['SVC_cluster']]
adata = T_SVC_adata.concatenate(TAM_SVC_adata)
adata
/tmp/ipykernel_31481/3388971096.py:7: ImplicitModificationWarning: Trying to modify attribute `.obs` of view, initializing view as actual.
T_SVC_adata.obs['SVC_cluster'] = [f"T_{i}" for i in T_SVC_adata.obs['SVC_cluster']]
/tmp/ipykernel_31481/3388971096.py:11: ImplicitModificationWarning: Trying to modify attribute `.obs` of view, initializing view as actual.
TAM_SVC_adata.obs['SVC_cluster'] = [f"TAM_{i}" for i in TAM_SVC_adata.obs['SVC_cluster']]
/tmp/ipykernel_31481/3388971096.py:13: FutureWarning: Use anndata.concat instead of AnnData.concatenate, AnnData.concatenate is deprecated and will be removed in the future. See the tutorial for concat at: https://anndata.readthedocs.io/en/latest/concatenation.html
adata = T_SVC_adata.concatenate(TAM_SVC_adata)
[16]:
AnnData object with n_obs × n_vars = 1763 × 13088
obs: 'Level1', 'Level2', 'SVC_cluster', 'max_score', 'batch'
var: 'gene_ids', 'feature_types', 'genome', 'n_cells'
obsm: 'SVC_cluster'
[17]:
adata.obs['SVC_cluster'].value_counts()
[17]:
SVC_cluster
T_5 857
TAM_1 345
T_1 287
TAM_0 274
Name: count, dtype: int64
[18]:
celltype_key = "SVC_cluster"
import omicverse as ov
cpdb_results, adata_cpdb = ov.single.run_cellphonedb_v5(
adata,
cpdb_file_path='./CCI/cellphonedb.zip',
celltype_key=celltype_key,
min_cell_fraction=0.005,
min_genes=200,
min_cells=3,
iterations=1000,
threshold=0.1,
pvalue=0.05,
threads=10,
output_dir=f'{output_dir}/cpdb_results',
cleanup_temp=True
)
🔬 Starting CellPhoneDB analysis...
✅ Valid CellPhoneDB database found: ./CCI/cellphonedb.zip (0.1 MB)
- Original data: 1763 cells, 13088 genes
- Cell types passing 0.5% threshold: 4
- Minimum cells required: 8
- After filtering: 1763 cells, 13088 genes
- After preprocessing: 1763 cells, 12470 genes
- Temporary directory: /tmp/cpdb_temp_hxatwp5o
- Output directory: ../../output/sc_SVC_case/P2CRC_Xenium/cpdb_results
- Created temporary input files
- Running CellPhoneDB statistical analysis...
Reading user files...
The following user files were loaded successfully:
/tmp/cpdb_temp_hxatwp5o/counts_matrix.h5ad
/tmp/cpdb_temp_hxatwp5o/metadata.tsv
[ ][CORE][13/05/26-10:39:31][INFO] [Cluster Statistical Analysis] Threshold:0.1 Iterations:1000 Debug-seed:42 Threads:10 Precision:3
[ ][CORE][13/05/26-10:39:31][WARNING] Debug random seed enabled. Set to 42
[ ][CORE][13/05/26-10:39:33][INFO] Running Real Analysis
[ ][CORE][13/05/26-10:39:33][INFO] Running Statistical Analysis
[ ][CORE][13/05/26-10:41:00][INFO] Building Pvalues result
[ ][CORE][13/05/26-10:41:00][INFO] Building results
[ ][CORE][13/05/26-10:41:00][INFO] Scoring interactions: Filtering genes per cell type..
[ ][CORE][13/05/26-10:41:00][INFO] Scoring interactions: Calculating mean expression of each gene per group/cell type..
[ ][CORE][13/05/26-10:41:00][INFO] Scoring interactions: Calculating scores for all interactions and cell types..
Saved deconvoluted to ../../output/sc_SVC_case/P2CRC_Xenium/cpdb_results/statistical_analysis_deconvoluted_05_13_2026_104112.txt
Saved deconvoluted_percents to ../../output/sc_SVC_case/P2CRC_Xenium/cpdb_results/statistical_analysis_deconvoluted_percents_05_13_2026_104112.txt
Saved means to ../../output/sc_SVC_case/P2CRC_Xenium/cpdb_results/statistical_analysis_means_05_13_2026_104112.txt
Saved pvalues to ../../output/sc_SVC_case/P2CRC_Xenium/cpdb_results/statistical_analysis_pvalues_05_13_2026_104112.txt
Saved significant_means to ../../output/sc_SVC_case/P2CRC_Xenium/cpdb_results/statistical_analysis_significant_means_05_13_2026_104112.txt
Saved interaction_scores to ../../output/sc_SVC_case/P2CRC_Xenium/cpdb_results/statistical_analysis_interaction_scores_05_13_2026_104112.txt
- CellPhoneDB analysis completed successfully!
- Formatting results for visualization...
- Found 13 info columns and 16 cell type pairs
- Found 84 pathway classifications
- Created visualization AnnData: (16, 810)
- Cell interactions: 16
- L-R pairs: 810
- Cleaned up temporary directory: /tmp/cpdb_temp_hxatwp5o
✅ CellPhoneDB analysis pipeline completed!
[19]:
cpdb_results.keys()
[19]:
dict_keys(['deconvoluted', 'deconvoluted_percents', 'means', 'pvalues', 'significant_means', 'CellSign_active_interactions', 'CellSign_active_interactions_deconvoluted', 'interaction_scores'])
[20]:
select_clusters = ['T_5','TAM_0']
df = cpdb_results['significant_means']
df = cpdb_results['interaction_scores']
df
# df = df[(df['source'].isin(select_clusters)) & (df['target'].isin(select_clusters))]
# df_sorted = df.sort_values('mean', ascending=False)
# df_sorted
[20]:
| id_cp_interaction | interacting_pair | partner_a | partner_b | gene_a | gene_b | secreted | receptor_a | receptor_b | annotation_strategy | ... | TAM_1|T_1 | TAM_1|T_5 | T_1|TAM_0 | T_1|TAM_1 | T_1|T_1 | T_1|T_5 | T_5|TAM_0 | T_5|TAM_1 | T_5|T_1 | T_5|T_5 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | CPI-SC0A2DB962D | CDH1_integrin_a2b1_complex | simple:P12830 | complex:integrin_a2b1_complex | CDH1 | NaN | False | False | False | curated | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1 | CPI-SC0B5CEA47D | COL10A1_integrin_a2b1_complex | simple:Q03692 | complex:integrin_a2b1_complex | COL10A1 | NaN | True | False | False | curated | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 2 | CPI-SC0C8B7BCBB | COL11A1_integrin_a2b1_complex | simple:P12107 | complex:integrin_a2b1_complex | COL11A1 | NaN | True | False | False | curated | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 4 | CPI-SC0B86B7CED | COL12A1_integrin_a2b1_complex | simple:Q99715 | complex:integrin_a2b1_complex | COL12A1 | NaN | True | False | False | curated | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 5 | CPI-SC0FA343CEF | COL13A1_integrin_a2b1_complex | simple:Q5TAT6 | complex:integrin_a2b1_complex | COL13A1 | NaN | False | False | False | curated | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 2897 | CPI-CS09A35DD21 | Prostacyclin_byPTGIS_PTGIR | complex:Prostacyclin_byPTGIS | simple:P43119 | NaN | PTGIR | True | False | True | curated | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 2898 | CPI-SS0CBC7840D | PTPRC_CD22 | simple:P08575 | simple:P20273 | PTPRC | CD22 | False | False | True | curated | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 2899 | CPI-SS0822AEF5F | PTPRC_MRC1 | simple:P08575 | simple:P22897 | PTPRC | MRC1 | False | False | True | curated | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 2900 | CPI-SS096F8C268 | PTPRD_IL1RAP | simple:P23468 | simple:Q9NPH3 | PTPRD | IL1RAP | True | True | True | curated | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 2910 | CPI-SS0AB1A3A6D | CD177_PECAM1 | simple:Q8N6Q3 | simple:P16284 | CD177 | PECAM1 | False | False | True | curated | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
810 rows × 29 columns
[21]:
cpdb_results.keys()
deconvoluted_percents = cpdb_results['deconvoluted_percents']
[22]:
select_LR_pairs = [
'ANXA1_FPR3','LTB_LTBR',
'CXCL10_CXCR3','CXCL9_CXCR3',
'CCL5_CCR1',
]
[23]:
def filter_df_by_cell_groups(df, cell_groups):
df.dropna(subset=['gene_a', 'gene_b'], inplace=True)
df['LR_pair'] = df['gene_a'] + '_' + df['gene_b']
df.set_index('LR_pair', inplace=True)
pattern = '|'.join(cell_groups)
result_df = df[
df.columns[df.columns.str.contains(pattern)].tolist()
]
return result_df
cell_groups = adata.obs['SVC_cluster'].unique().tolist()
print(cell_groups)
pvals = cpdb_results['pvalues']
pvals = filter_df_by_cell_groups(pvals, cell_groups)
pvals = pvals.loc[select_LR_pairs]
# significant_means
significant_means = cpdb_results['significant_means']
significant_means = filter_df_by_cell_groups(significant_means, cell_groups)
significant_means = significant_means.loc[select_LR_pairs]
interaction_scores = cpdb_results['interaction_scores']
interaction_scores = filter_df_by_cell_groups(interaction_scores, cell_groups)
interaction_scores = interaction_scores.loc[select_LR_pairs]
interaction_scores
['T_5', 'T_1', 'TAM_1', 'TAM_0']
[23]:
| TAM_0|TAM_0 | TAM_0|TAM_1 | TAM_0|T_1 | TAM_0|T_5 | TAM_1|TAM_0 | TAM_1|TAM_1 | TAM_1|T_1 | TAM_1|T_5 | T_1|TAM_0 | T_1|TAM_1 | T_1|T_1 | T_1|T_5 | T_5|TAM_0 | T_5|TAM_1 | T_5|T_1 | T_5|T_5 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LR_pair | ||||||||||||||||
| ANXA1_FPR3 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.000 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| LTB_LTBR | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 33.637 | 0.0 | 0.0 | 0.0 | 100.0 | 0.0 | 0.0 |
| CXCL10_CXCR3 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.000 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| CXCL9_CXCR3 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.000 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| CCL5_CCR1 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.000 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
[24]:
import matplotlib.pyplot as plt
import numpy as np
import matplotlib.colors as mcolors
from matplotlib.patches import Patch
from matplotlib.lines import Line2D
import matplotlib as mpl
import matplotlib.pyplot as plt
mpl.rcParams['pdf.fonttype'] = 42
mpl.rcParams['ps.useafm'] = False
def LR_pair_dotplot(scores, pvals, cmap='RdBu_r', pval_cutoff=0.1, save_file_name=None):
row_names = scores.index.tolist()
col_names = scores.columns.tolist()
scores = np.array(scores)
pvals = np.array(pvals)
score_min = np.nanmin(scores)
score_max = np.nanmax(scores)
log_pvals = -np.log10(pvals + 1e-20)
size_mask = pvals >= pval_cutoff
log_pvals_filtered = log_pvals.copy()
log_pvals_filtered[size_mask] = 0
min_size = 20
max_size = 200
significant_log_pvals = log_pvals_filtered[log_pvals_filtered > 0]
if len(significant_log_pvals) > 0:
min_sig_pval = np.min(significant_log_pvals)
max_sig_pval = np.max(significant_log_pvals)
else:
min_sig_pval = 1
max_sig_pval = 3
sizes = np.zeros_like(log_pvals_filtered)
significant_mask = log_pvals_filtered > 0
sizes[significant_mask] = np.interp(
log_pvals_filtered[significant_mask],
(min_sig_pval, max_sig_pval),
(min_size, max_size)
)
fig, ax = plt.subplots(figsize=(10,4))
# Plot each point (with the y-axis inverted)
for i in range(scores.shape[0]):
for j in range(scores.shape[1]):
if not np.isnan(scores[i, j]) and not np.isnan(pvals[i, j]):
if sizes[i, j] > 0:
ax.scatter(j, len(row_names)-1-i,
c=[scores[i, j]],
s=sizes[i, j],
cmap=cmap,
alpha=0.7,
edgecolors='black',
linewidth=0.5,
vmin=score_min,
vmax=score_max)
ax.set_xticks(range(len(col_names)))
ax.set_xticklabels(col_names, rotation=45, ha='right', fontsize=10)
ax.set_yticks(range(len(row_names)))
ax.set_yticklabels(row_names[::-1], fontsize=10)
ax.set_xlim(-0.5, len(col_names)-0.5)
ax.set_ylim(-0.5, len(row_names)-0.5)
ax.grid(True, alpha=0.3, linestyle='-', linewidth=0.5)
ax.set_axisbelow(True)
norm = mcolors.Normalize(vmin=score_min, vmax=score_max)
sm = plt.cm.ScalarMappable(cmap=cmap, norm=norm)
sm.set_array([])
cbar = plt.colorbar(sm, ax=ax, shrink=0.5, aspect=20, pad=0.02)
cbar.set_label('Scores', rotation=270, labelpad=15)
if len(significant_log_pvals) > 0:
use_power_scale = (max_sig_pval / min_sig_pval > 100) and (max_sig_pval > 10)
if use_power_scale:
min_power = 0
max_power = np.ceil(np.log10(max_sig_pval))
representative_log_pvals = [10**power for power in range(int(min_power), int(max_power)+1)]
representative_log_pvals = [x for x in representative_log_pvals
if x <= max_sig_pval * 1.1]
else:
num_points = min(5, max(2, int(max_sig_pval - min_sig_pval) + 1))
representative_log_pvals = np.linspace(min_sig_pval, max_sig_pval, num_points)
representative_log_pvals = [x for x in representative_log_pvals
if min_sig_pval <= x <= max_sig_pval * 1.1]
representative_log_pvals = sorted(set(representative_log_pvals))
if not representative_log_pvals:
representative_log_pvals = [min_sig_pval, max_sig_pval]
representative_sizes = np.interp(representative_log_pvals,
(min_sig_pval, max_sig_pval),
(min_size, max_size))
legend_elements = []
for log_pval, size in zip(representative_log_pvals, representative_sizes):
if log_pval >= 100 or (log_pval >= 1 and log_pval == int(log_pval)):
label = f'-log10(p) = {log_pval:.0f}'
elif log_pval >= 10:
label = f'-log10(p) = {log_pval:.1f}'
else:
label = f'-log10(p) = {log_pval:.2f}'
legend_elements.append(Line2D([0], [0],
marker='o',
color='w',
markerfacecolor='gray',
markersize=np.sqrt(size)/2,
markeredgecolor='black',
label=label))
else:
legend_elements = [Line2D([0], [0], marker='o', color='w', markerfacecolor='gray',
markersize=0, label='No significant points')]
significance_legend = ax.legend(handles=legend_elements,
loc='upper left',
bbox_to_anchor=(1.02, 1.0),
title='Significance',
frameon=True,
fancybox=True,
shadow=True,
fontsize=9)
ax.set_xlabel('Cell pairs', fontsize=12)
ax.set_ylabel('LR pairs', fontsize=12)
ax.set_title(f'LR Pair Dot Plot', fontsize=14, pad=20)
plt.tight_layout(rect=[0, 0, 0.85, 1])
if save_file_name:
plt.savefig(save_file_name, dpi=300, bbox_inches='tight')
else:
plt.show()
[25]:
scores = interaction_scores.copy()
scores = significant_means.copy()
save_file_name = None
save_file_name = f"{output_dir}/LR_pair_dotplot.pdf"
LR_pair_dotplot(scores, pvals, save_file_name = save_file_name)
